貝格斯 Gap Pad VO Soft，Gap Pad VO Soft

產品分類：導熱材料

產品類型：全新　|　已有22505人關注

貝格斯 Gap Pad VO Soft

特點和優點：

導熱系數：0.8W

熱阻抗：2.11℃-in2/W(@30psi)

墊片材料厚度：0.508mm/5.08mm

阻燃等級：V-O

連續使用溫度：-60℃+200℃

絕緣擊穿電壓：﹥6000V

柔軟、低硬度

提高穿刺、剪切和撕裂

電隔離

Gap Pad VO Soft推薦在效小壓力部件上的應用。是一個高度整合、低模量、填充硅橡膠涂覆玻璃纖維聚合物載體。

典型的應用包括：遠程通信.計算機及外圍設備.電源轉換.熱發電半導體或磁性元件與散熱片之間 .區域熱需要轉移到車架、底盤、或其他類型的散熱器。

性能：

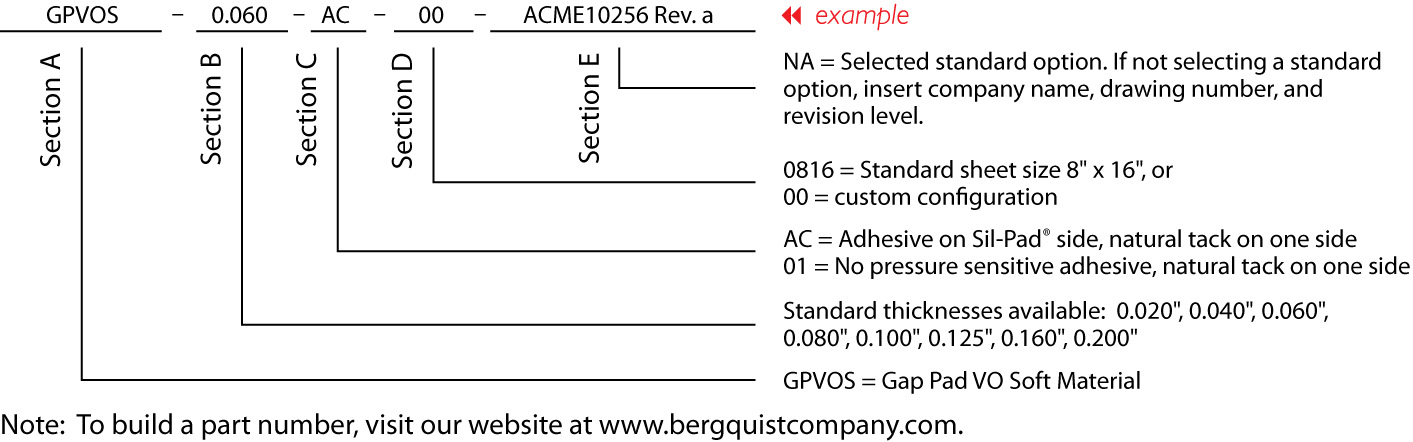

配置可用

Typical Properties of Gap Pad VO Soft
Property	Imperial Value	Metric Value	Test Method
Color	Mauve/Pink	Mauve/Pink	Visual
Reinforcement Carrier	Sil-Pad	Sil-Pad	***
Thickness (inch) / (mm)	0.020 to 0.200	0.508 to 5.080	ASTM D374
Inherent Surface Tack (1 side)	1	1	***
Density (Bulk Rubber) (g/cc)	1.6	1.6	ASTM D792
Heat Capacity (J/g-K)	1.0	1.0	ASTM E1269
Hardness (Bulk Rubber) (Shore 00) (1)	25	25	ASTM D2240
Young's Modulus (psi) / (kPa) (2)	40	275	ASTM D575
Continuous Use Temp. (°F) / (°C)	-76 to 392	-60 to 200	***
Electrical
Dielectric Breakdown Voltage (Vac)	>6000	>6000	ASTM D149
Dielectric Constant (1 Mhz)	5.5	5.5	ASTM D150
Volume Resistivity (Ohm-meter)	1011	1011	ASTM D257
Flame Rating	V-O	V-O	U.L. 94
Thermal
Thermal Conductivity (W/m-K)	0.8	0.8	ASTM D5470

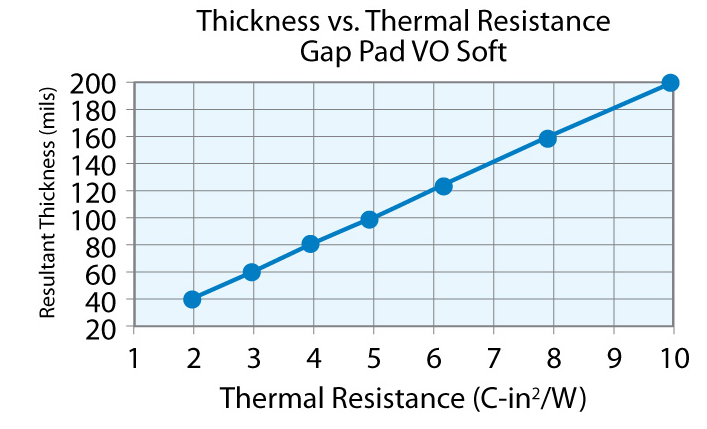

Thermal Performance vs. Strain
Deflection (% strain)	10	20	30
Thermal Impedance (°C-in2/W) 0.040" (3)	2.48	2.29	2.11
Thermal Impedance (°C-cm2/W) 1.016mm (3)	16.0	14.8	13.6
1) Thirty second delay value Shore 00 hardness scale. 2) Young's Modulus, calculated using 0.01 in/min. step rate of strain with a sample size of 0.79 inch2. 3) The ASTM D5470 test fixture was used. The recorded value includes interfacial thermal resistance. These values are provided for reference only. Actual application performance is directly related to the surface roughness, flatness and pressure applied.
