詳細說明:
特 點:

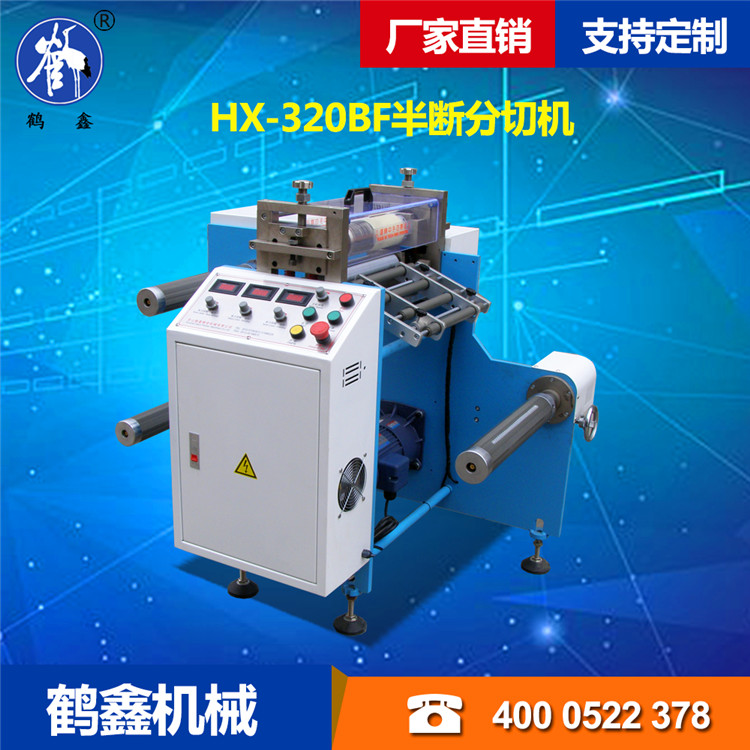

HX-320BF半斷分切機主要用于高精度,大尺寸長條半斷分切,放卷、分切、收卷同步進行。既可以分切卷材產品,也可分切片材產品。精度高,效率高,損耗少,操作簡單。
Feature:
This machine is mainly used for high-precision, half cutting for large-size, unwinding, slitting, rewinding simultaneously. It also can slit products in roll and products in sheet. High precision, high efficiency, low waste, easy to operate.
用 途:
適用于腳墊、硅橡膠、泡棉、擴散片、反射膜、雙面膠、PET、PC、PE、絕緣紙、銅/鋁箔、導電布、導電泡棉,各種膠粘制品等材料分切。
Application:
Slitting for car mat, silicon rubber, foam, diffuser, reflective film, double-sided adhesive tape, PET,PC,PE, insulation paper, copper/aluminum foil, conductive fabric, conductive foam and various of adhesive products.
主要技術參數:
Main Technical Parameters:
型號 Model |
HX-320BF |
電壓 Voltage |
220V50HZ |
動力 Power |
1HP |
分切速度 sliiting speed |
0-60m/min |
**大進料寬度max feeding width |
320mm |
**小分切寬度min slitting width |
1mm |
**大分切寬度max slitting width |
320mm |
分切精度Precision |
±0.05mm |
**大收料直徑max winding diameter |
350mm |
外型(長*寬*高)machine size (L*W*H) |
1500*1000*1000mm |
凈重 N.W. |
350kg |
